PMC Motorsport - Drift Stage 2 Honda K20 K24 - BMW M50 S50 M52 S52 M54 ZF-5 5-speed - 240mm / 9.45" RWD (0° Vertical)
PMC Motorsport - Drift Stage 2 Honda K20 K24 - BMW M50 S50 M52 S52 M54 ZF-5 5-speed - 240mm / 9.45" RWD (0° Vertical)

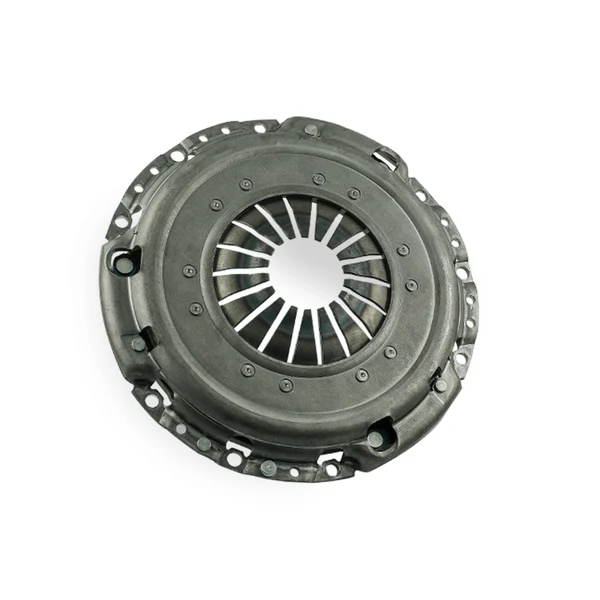

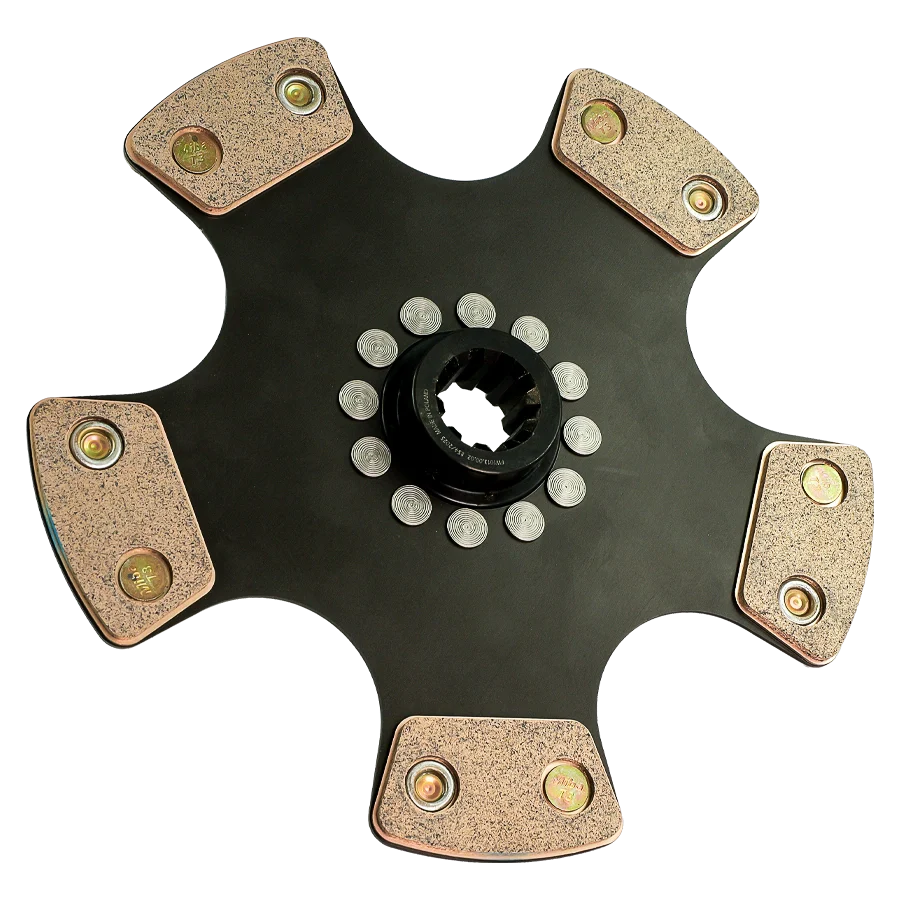

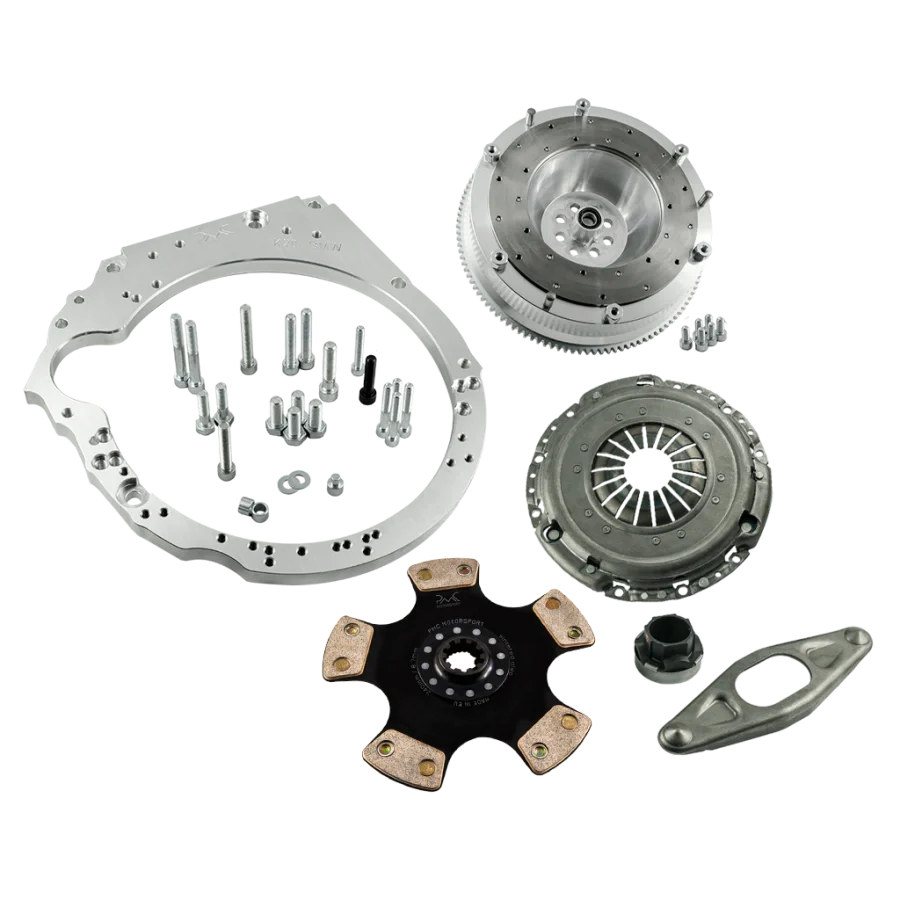

PMC Motorsport adapter / conversion kit / clutch kit Honda K20 K24 - BMW M50 M52 M54 ZF310 ZF320 ZF-5 S5D-250 5-speed / S50 S52 Getrag 420G 6-speed - 240mm / 9.45" + Pressure plate without self-adjusters + sintered disc 23x29-10N max. 700Nm / 516.12 lb⋅ft (0° - vertical engine position)
Clutch kit for connecting (swap / conversion) the Honda K20 K24 engine with a manual ZF (ZF Friedrichshafen) / GETRAG gearbox from BMW. The adapter supports very popular manual gearboxes such as: ZF 5, GETRAG 420 G (inline engine version), GETRAG 250 G. The kit includes a clutch pressure plate without self-adjusters and a PMC 10N sintered disc - maximum torque 700Nm / 516.12 lb⋅ft !!! Due to its characteristics, this kit is intended for motorsport use!!!
Planning a Honda K20 K24 swap in your BMW (E30, E36, E46, E34, E39, E90, E91, E92, E60, E61, E81, E82, E87)? Our adapter is a reliable solution. Replace the automatic transmission with a manual one from BMW and gain new possibilities. PMC Motorsport adapters are not only for gearbox replacement in Honda K20 K24, but also support Honda K SWAPs in BMW and other vehicles such as Nissan (S13, S14, S15, PS13) or Mazda RX-7 / RX-8.
PMC Motorsport gearbox adapters are a synonym for precision and top quality. The design process based on 3D scanning and inspection using a measuring arm ensures a perfect fit. Production on modern CNC machines guarantees ideal alignment of the engine and gearbox, which is crucial for the durability of the drivetrain.
Our entire production and R&D department are located in Poland. More than 90% of the components are manufactured in-house.
Selection Assistance and After-Sales Support - PMC Motorsport Support
The PMC Motorsport team will help you choose the right kit for your needs. In case of any doubts during installation, we provide technical support. You can reach us via the contact form.
Individual Component Purchase
We offer every element of our kit for individual purchase.
Thousands of manufactured adapters and satisfied customers worldwide.
PMC Motorsport adapters are used both in "Daily" cars and professional motorsport projects.
From the beginning, we have focused on the quality of our parts. Each component is inspected after every production stage. Every part manufactured by us is engraved with a production serial number.
Quality confirmed by ISO PN-EN ISO 9001:2015 certificate
We ship our products to almost every country in the world. Shipping costs for European Union countries (excluding islands) and the UK are calculated automatically. For countries not on the list, our team will prepare a shipping quote after the order is placed and add it to your order. You will receive an email with the total cost.
NOTICE: The shipping quote provided along with the product price does not include additional fees / customs duties that may occur depending on the destination country.
VAT 0%
0% VAT for customers with an active European VAT number (option for B2B customers outside of Poland) and for export outside the EU.
After successful verification in the VIES system, we modify the order by removing the charged VAT.
| Compatible Engines: |
Honda Honda K20 K20A K20A1 K20A2 K20A3 K20A4 K20A6 K20Z1 K20Z2 K20Z3 K20Z4 Honda K24 K24A1 K24A2 K24A3 K24A4 K24A8 K24Z1 K24Z2 K24Z3 K24Z4 K24Z5 K24Z6 K24Z7 |
| Compatible Gearboxes: |
GETRAG S5D-250G S5D250 5-speed BMW M50 M52 ZF (ZF Friedrichshafen) S5D-310 ZF 310 / ZF310 S5-31 5-speed BMW M50 ZF (ZF Friedrichshafen) S5D-320 ZF 320 / ZF320 S5-32 5-speed BMW M50 M52 S50 S52 S54 GETRAG 420 / 420G (inline engines only) 6-speed GETRAG 420 / 420G TBAB BMW S50 E36 M3 GETRAG 420 / 420G TAGU BMW S50 E36 M3 Flywheel does NOT fit BMW M54 GS6-37BZ 6-speed / BMW M60 M62 GETRAG 420G |
Additional Information
ZF Friedrichshafen ZF5 S5-32D
The ZF Friedrichshafen ZF-5 (ZF 5) S5D-310 S5D-320 is a 5-speed manual gearbox used in BMW E-series cars with M50, M52, and M54 engines (E36 328i, M3 USA, E46 328i, 328ci, 330i, E34 525i (M50), E39 525i (M54), 528i (M52), 530i (M54), Z3 2.8i (M52), 3.0i (M54), Z3 M3.2i (S52) *Canada & USA versions only, M3.2i (S54)). The gearbox weight is approx. 39 kg (86 lb). Input shaft spline type: 23x29-10N
ZF 5 Gear Ratios |
|||||
|---|---|---|---|---|---|
| 1 | 2 | 3 | 4 | 5 | R |
| 4.210 | 2.490 | 1.670 | 1.240 | 1.000 | 3.850 |
ZF 320D 10534013 |
 |
ZF 320D 105340148 |
 |
PMC Motorsport parts are designed for motorsport use on racing tracks.
Parts are intended for installation by professionals with knowledge of engine SWAPs and car modifications, in workshops using appropriate tools.
The adapter installation instructions provide only the basic knowledge necessary for the physical connection of the engine and gearbox outside the vehicle body.
Depending on the vehicle, additional modifications may be required, such as: adjusting mounts, bushings, engine firewall, transmission tunnel, driveshaft length, etc.
Our adapters are made from fully recyclable materials.

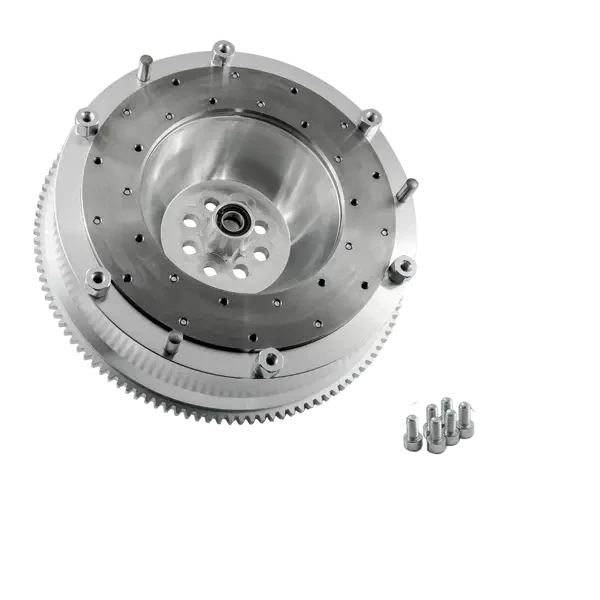

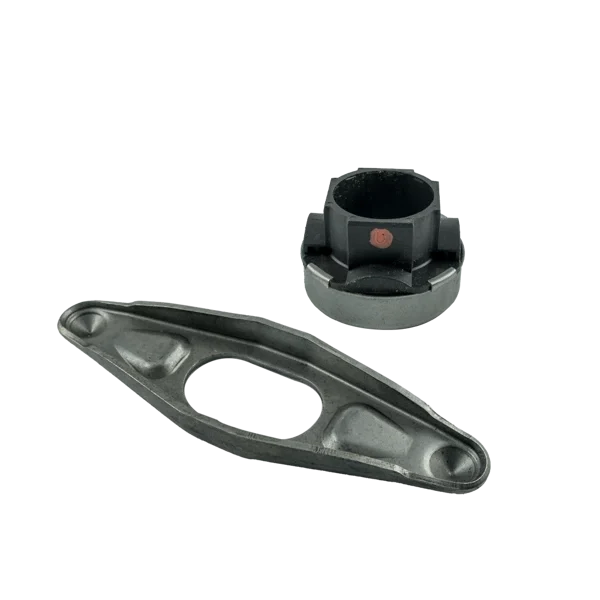

To mount the flywheel, use Honda K OE 90011-PNA-B00 bolts (not included). The clutch release fork should be mounted on the lower position of the release bearing (in the case of a two-position bearing)
FAQ
1. Which starter motor should be used with the PMC Motorsport Honda K K20 K24 - BMW adapter?
The Honda K starter motor must be used for the adapter installation.
2. The GETRAG 250 / GETRAG 420 / ZF 310 / ZF 320 / ZF5 gearbox does not fit all holes of the PMC Motorsport gearbox adapter.
(Applies to adapters manufactured after 2022) The PMC Motorsport adapter is the most universal adapter on the market, supporting practically every BMW gearbox. When designing the adapter, we decided on certain compromises. This is the case for the following gearboxes: GETRAG 250 / GETRAG 420 / ZF 310 / ZF 320 / ZF5, where the two upper holes must be slightly ground in the gearbox housing/bellhousing. This modification does not affect the centering of the engine and gearbox.
5. Which clutch can I use with the PMC Motorsport flywheel?
The Honda K K20 K24 - BMW ZF5 flywheel was designed for a clutch pressure plate from BMW M57 / M57N / M57N2 / N54 / B58 / BMW E46 M3 / Sachs Performance 883082.001243. Very often, clutches from ACT / Spec / Tanaci are used with our kit (it is important that the custom clutch pressure plate also fits the BMW OE flywheel: BMW M57 / M57N / M57N2 / N54 / B58). For your gearbox, you must use a clutch disc with the appropriate spline, a dedicated release kit, and a slave cylinder.
