PMC Motorsport - Race Stage 3 Toyota JZ - BMW M50 S50 M52 S52 M54 ZF-5 - 184mm / 7.25" (S)

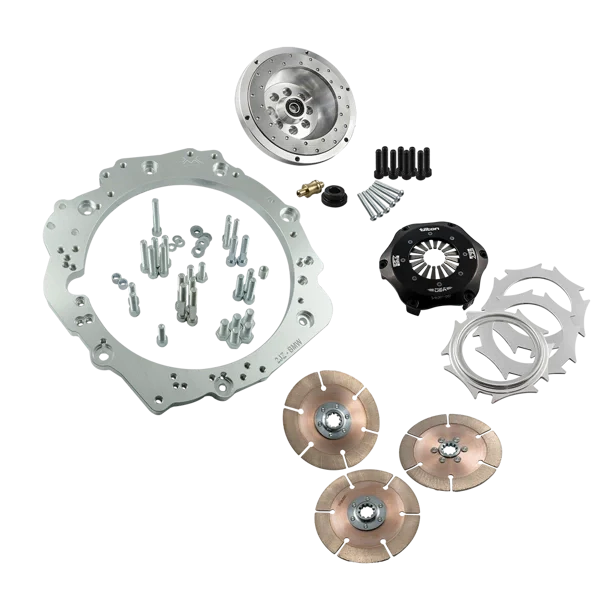

PMC Motorsport adapter / conversion kit / clutch kit Toyota JZ 1JZ 2JZ - BMW M50 M52 M54 ZF310 ZF320 ZF-5 S5D-250 5-speed / S50 S52 Getrag 420G 6-speed 184mm / 7.25" STEP type + Tilton OT-II Cerametallic Pressure Plate 7.25" 66-302 HGG + Tilton 64185-2-ABA-10 max. 1300Nm / 958.5lbâ‹…ft [Triple disc]
Clutch kit enabling the connection (swap / conversion) of the Toyota JZ 1JZ 2JZ engine (GE, GTE, VVT-i and non-VVT-i versions) with a manual ZF (ZF Friedrichshafen) / GETRAG gearbox from BMW. The adapter supports very popular manual transmissions such as: ZF 5, GETRAG 420 G (inline engine version), GETRAG 250 G. The kit includes a triple-disc clutch: a Tilton racing pressure plate (OT-II Cerametallic Pressure Plate 7.25" 66-003 HGG) and 3 Tilton 7.25" sintered discs (64185-2-ABA-10). Due to its specifications, this kit is intended for professional motorsport. Adapter designed for professional motorsport!
Are you planning a Toyota JZ 1JZ 2JZ SWAP in your BMW (E30, E36, E46, E34, E39, E90, E91, E92, E60, E61, E81, E82, E87)? Our adapter is a reliable solution. Replace your automatic transmission with a manual one from BMW and unlock new possibilities. PMC Motorsport adapters are not just for gearbox replacements in Toyota JZ 1JZ 2JZ, but also provide support for JZ SWAPs in BMW and other vehicles, such as Nissan (S13, S14, S15, PS13) or Mazda RX-7 / RX-8.

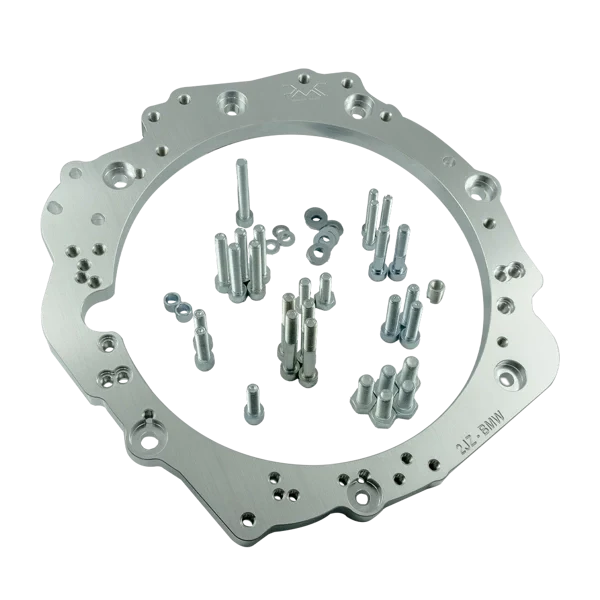

PMC Motorsport gearbox adapters are a synonym for precision and top quality. The design process based on 3D scanning and inspection using a measuring arm ensures a perfect fit. Production on modern CNC machines guarantees ideal alignment of the engine and gearbox, which is crucial for the durability of the drivetrain.
Our entire production and R&D department are located in Poland. More than 90% of the components are manufactured in-house.
Selection Assistance and After-Sales Support - PMC Motorsport Support
The PMC Motorsport team will help you choose the right kit for your needs. In case of any doubts during installation, we provide technical support. You can reach us via the contact form.
Individual Component Purchase
We offer every element of our kit for individual purchase.
Thousands of manufactured adapters and satisfied customers worldwide.
PMC Motorsport adapters are used both in "Daily" cars and professional motorsport projects.
From the beginning, we have focused on the quality of our parts. Each component is inspected after every production stage. Every part manufactured by us is engraved with a production serial number.
Quality confirmed by ISO PN-EN ISO 9001:2015 certificate
We ship our products to almost every country in the world. Shipping costs for European Union countries (excluding islands) and the UK are calculated automatically. For countries not on the list, our team will prepare a shipping quote after the order is placed and add it to your order. You will receive an email with the total cost.
NOTICE: The shipping quote provided along with the product price does not include additional fees / customs duties that may occur depending on the destination country.
VAT 0%
0% VAT for customers with an active European VAT number (option for B2B customers outside of Poland) and for export outside the EU.
After successful verification in the VIES system, we modify the order by removing the charged VAT.
| Compatible Engines: |
Toyota JZ Toyota 1JZ 1JZ-FSE 1JZ-GE 1JZ-GTE (non VVT-i / VVT-i versions) Toyota 2JZ 2JZ-FSE 2JZ-GE 2JZ-GTE (non VVT-i / VVT-i versions) |
| Compatible Gearboxes: |
GETRAG S5D-250G S5D250 5-speed BMW M50 M52 ZF (ZF Friedrichshafen) S5D-310 ZF 310 / ZF310 S5-31 5-speed BMW M50 ZF (ZF Friedrichshafen) S5D-320 ZF 320 / ZF320 S5-32 5-speed BMW M50 M52 S50 S52 S54 GETRAG 420 / 420G (inline engines only) 6-speed GETRAG 420 / 420G TBAB BMW S50 E36 M3 GETRAG 420 / 420G TAGU BMW S50 E36 M3 GETRAG 420 / 420G TBAI BMW S54 E46 M3 Flywheel does NOT fit BMW M54 GS6-37BZ 6-speed / BMW M60 M62 GETRAG 420G |
Additional Information
ZF Friedrichshafen ZF5 S5-32D
The ZF Friedrichshafen ZF-5 (ZF 5) S5D-310 S5D-320 is a 5-speed manual gearbox used in BMW E-series cars with M50, M52, and M54 engines (E36 328i, M3 USA, E46 328i, 328ci, 330i, E34 525i (M50), E39 525i (M54), 528i (M52), 530i (M54), Z3 2.8i (M52), 3.0i (M54), Z3 M3.2i (S52) *Canada & USA versions only, M3.2i (S54)). The gearbox weight is approx. 39 kg (86 lb). Input shaft spline type: 23x29-10N
ZF 5 Gear Ratios |
|||||
|---|---|---|---|---|---|
| 1 | 2 | 3 | 4 | 5 | R |
| 4.210 | 2.490 | 1.670 | 1.240 | 1.000 | 3.850 |
Â
ZF 320D 10534013 |
 |
ZF 320D 105340148 |
 |
PMC Motorsport parts are designed for motorsport use on racing tracks.
Parts are intended for installation by professionals with knowledge of engine SWAPs and car modifications, in workshops using appropriate tools.Â
The adapter installation instructions provide only the basic knowledge necessary for the physical connection of the engine and gearbox outside the vehicle body.
Depending on the vehicle, additional modifications may be required, such as: adjusting mounts, bushings, engine firewall, transmission tunnel, driveshaft length, etc.
Our adapters are made from fully recyclable materials.

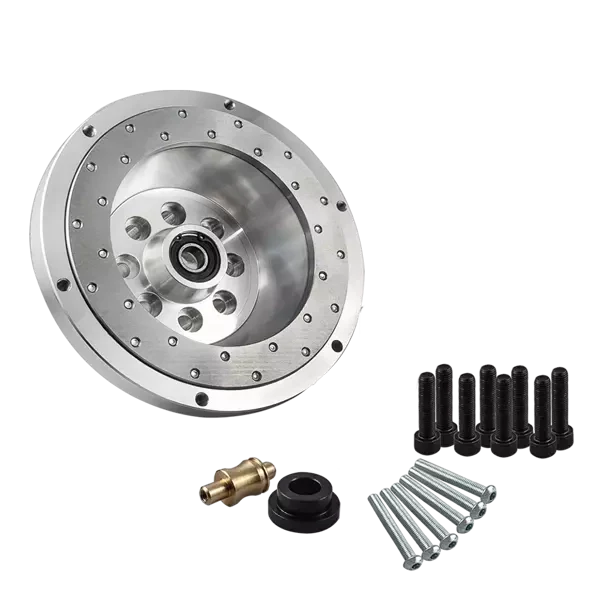

To install the flywheel, it is necessary to use the automatic version starter ring gear Toyota OE 32101-30090 | 32101-22050 and the spacer between the engine block and the ring gear OE 32116-22020 4.5mm (not included). Mount the clutch fork on the lower release bearing position (in case of a two-position bearing).
FAQ
1. Which starter motor should be used with the PMC Motorsport Toyota JZ 1JZ 2JZ - BMW adapter?
For the adapter installation, use the Toyota JZ starter motor without the additional pinion shroud. Depending on the version of the Toyota JZ 1JZ 2JZ - BMW adapter you have, there are three installation methods:
a) Adapters produced until 2022 - The starter is mounted identically to the Original Equipment (OE).
b) Adapters produced from 2022 to 2025 - One of the starter mounting holes in the engine block must be enlarged. The hole should be drilled to a diameter of ∅12.9-13.2 mm (0.507"-0.520") to a depth of 22 mm (0.866"). Then, use the bushing from the AN 335-M10 kit and secure it with an ISO4762-M10x35 bolt.
c) Adapters produced from January 2025 - The lower mounting hole in the starter must be enlarged to ∅12-13 mm, and the engine block must be tapped for M12x1.5.
2. Which ring gear should be used with the PMC Motorsport Toyota JZ 1JZ 2JZ - BMW flywheel?
When installing the PMC Motorsport Toyota JZ 1JZ 2JZ - BMW flywheel, use the starter ring gear (flywheel) from the automatic version of Toyota 1JZ / 2JZ (OE number: 32101-30090 | 32101-22050) and one Toyota spacer (OE number: 32116-22020) with a thickness of 4.5 mm between the engine block and the ring gear.
3. The GETRAG 250 / GETRAG 420 / ZF 310 / ZF 320 / ZF5 gearbox does not fit all holes of the PMC Motorsport gearbox adapter.
(Applies to adapters manufactured after 2022) The PMC Motorsport adapter is the most universal adapter on the market, supporting virtually every BMW gearbox. While designing the adapter, we decided on certain compromises. This is the case for the GETRAG 250 / GETRAG 420 / ZF 310 / ZF 320 / ZF5 gearboxes, where two upper holes must be slightly trimmed/ground in the gearbox bellhousing. This modification does not affect the centering of the engine and gearbox.
4. Can I use the gearbox adapter for the 6-speed GS6-53DZ / GS6-53BZ gearbox?
Yes, the PMC Motorsport gearbox adapter itself is universal and fits most BMW gearboxes available on the market (applies to adapters manufactured after 2022). If you wish to change the gearbox, simply replace the flywheel and clutch disc.
5. Can I use the PMC Motorsport Toyota 1JZ 2JZ - BMW gearbox adapter for a ZF 8HP?
Yes, the PMC Motorsport gearbox adapter itself is universal and fits most BMW gearboxes available on the market (applies to adapters manufactured after 2022). If you wish to switch to a ZF 8HP automatic transmission, you must replace the standard flywheel with an 8HP converter adapter (PMC Motorsport).
