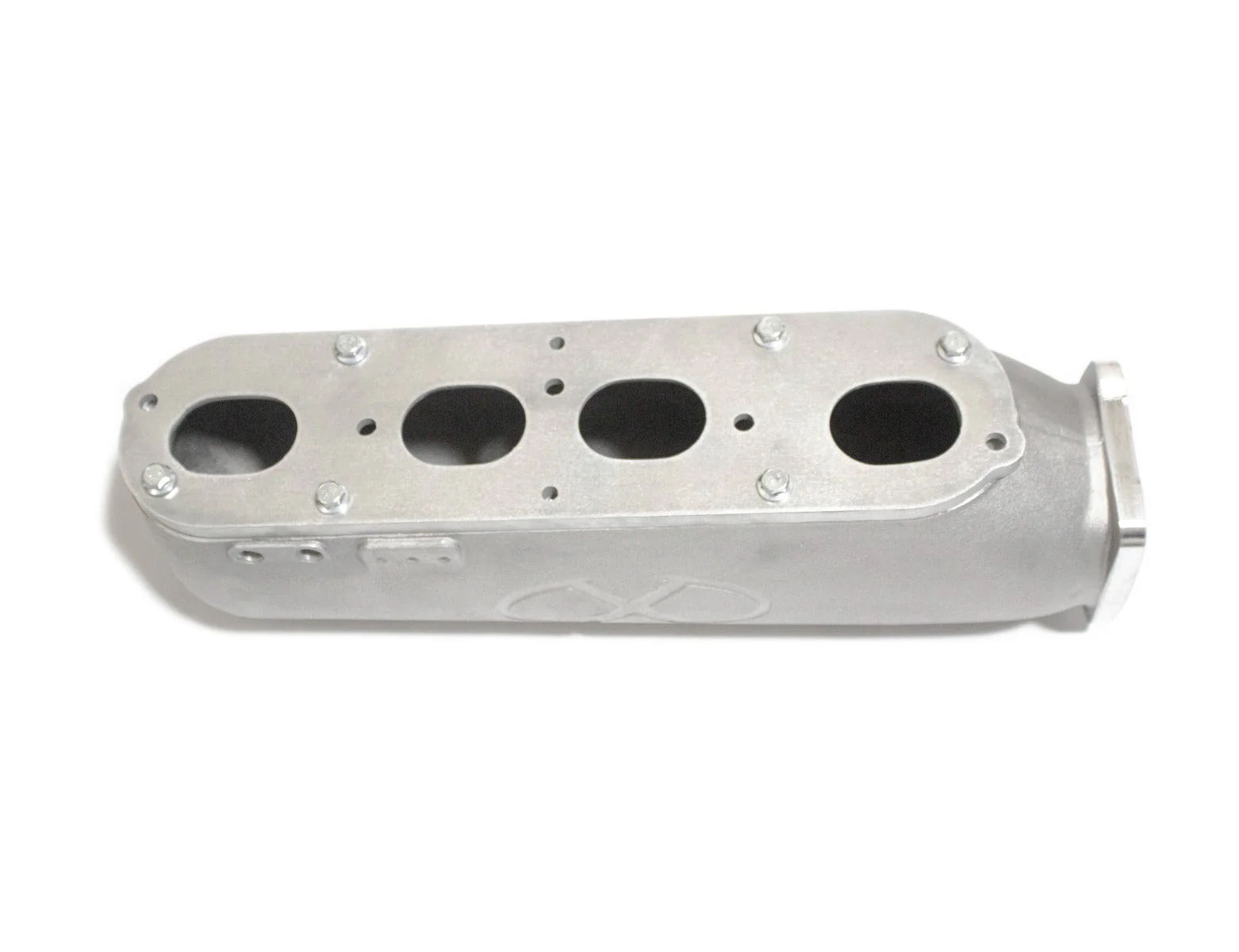

-SR20VE Bolt on Plenum Kit (P11 oval port)

Xcessive's bolt on plenum kit for the SR20VE (P11 oval port) motor is designed to take advantage of the factory short runner lower section and dramatically increase flow for boosted motors. With a  smooth radius on the plenum adapter plate and significant increase in plenum volume, air flow will be dramatically increased in the upper RPM. Our two piece runner/plenum design also allows for easier porting and polishing of the intake than standard welded designs.

   The runners are shown with the plenum set up for a rear wheel drive application. RWD cars (180SX, 240SX) will have hood clearance problems due to the upward sweep of the P11 stock runners. The plenum is reversible for use on front wheel drive cars where the throttle body needs to face the other direction.

If your running a stock throttle body on a front wheel drive application, you may want our stainless throttle cable bracket.

   The new plenum is permanent mold cast for superior finish and casting soundness with a phenolic shell core used for internal walls to yield some of the best quality available. The plenum is drilled for the factory throttle body and bolt pattern but comes pre machined for up to a 70 mm bore (Up to 80 mm bore available and custom bolt patterns as special order, call prior to ordering.)

Kit Includes:

Plenum with SR throttle body bolt pattern (DET, P11)

Bolt on adapter plate

Bolting hardware

Vacuum  barbs and port plugs



Stock SR20VE runners not included!!
