PMC Motorsport - Race Stage 1+ GM Chevrolet V8 LS - manual 6-speed BMW M57n GS6-53DZ HGD JGA - 240mm / 9.45"
PMC Motorsport - Race Stage 1+ GM Chevrolet V8 LS - manual 6-speed BMW M57n GS6-53DZ HGD JGA - 240mm / 9.45"

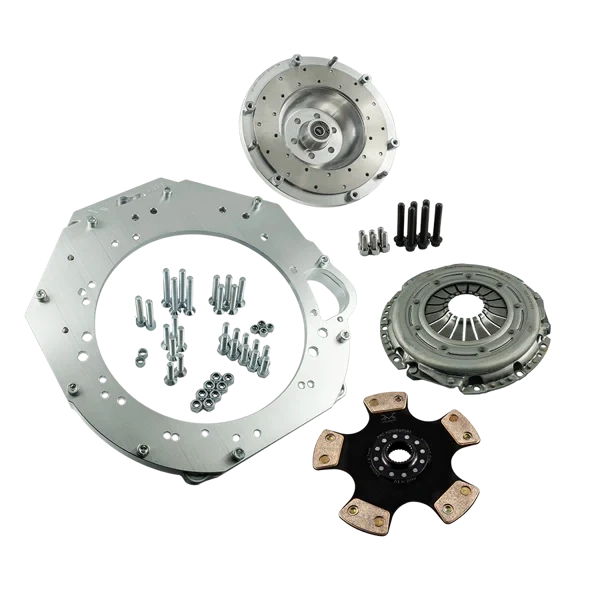

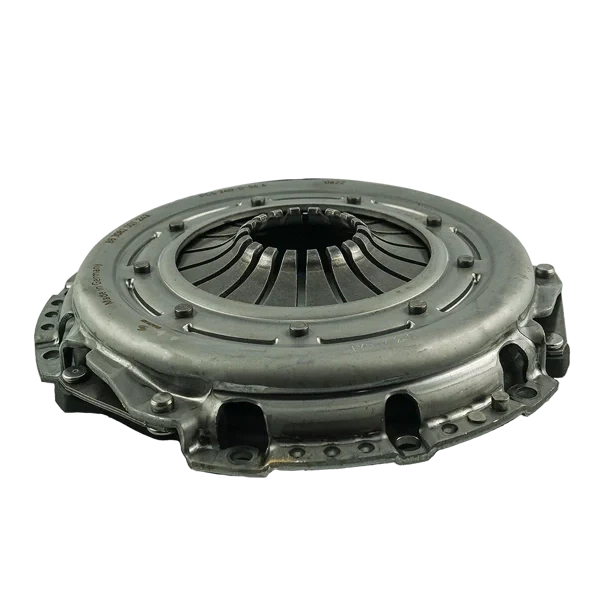

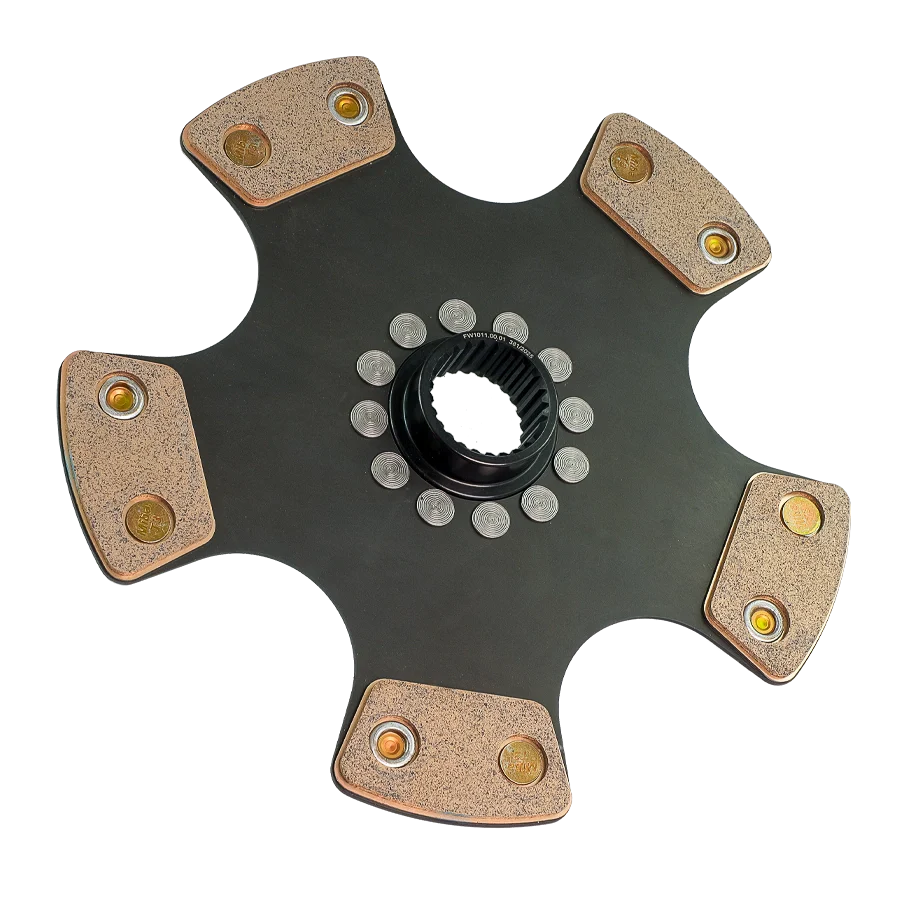

PMC Motorsport Race Stage 1+ adapter / Adaptor kit / swap kit / conversion kit / clutch kit GM Chevrolet LS LS1 LS2 LS3 LS6 LS7 / Vortec - BMW E60 E61 530D M57n ZF GS6-53DZ HGD JGA 6-speed - 240mm / 9.45" + Sachs Performance 883082.001243 + Sintered disc 32,5x35-26N max. 800Nm / 589,9lbâ‹…ft

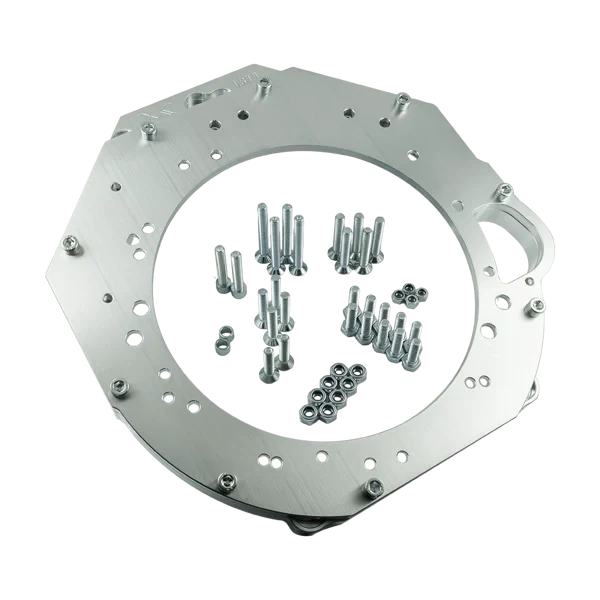

An adapter allowing the connection (swap / conversion) of a GM Chevrolet LS LS1 LS2 LS3 LS6 LS7 / Vortec with a ZF manual transmission (ZF Friedrichshafen) used in BMWs. The perfect solution for amateur and professional motorsports.
Planning to do a GM Chevrolet LS LS1 LS2 LS3 LS6 LS7 / Vortec SWAP in your BMW (E30, E36, E46, E34, E39, E90, E91, E92, E60, E61, E81, E82, E87)? Our adapter is a reliable solution. Replace your automatic transmission with a BMW manual transmission and gain new possibilities. PMC Motorsport adapters are not only for transmission swaps in GM Chevrolet LS LS1 LS2 LS3 LS6 LS7 / Vortec engines but also provide support for executing LS swaps in BMWs and other vehicles, such as Nissan (S13, S14, S15, PS13) or Mazda RX-7 / RX-8.
 |
 |
 |

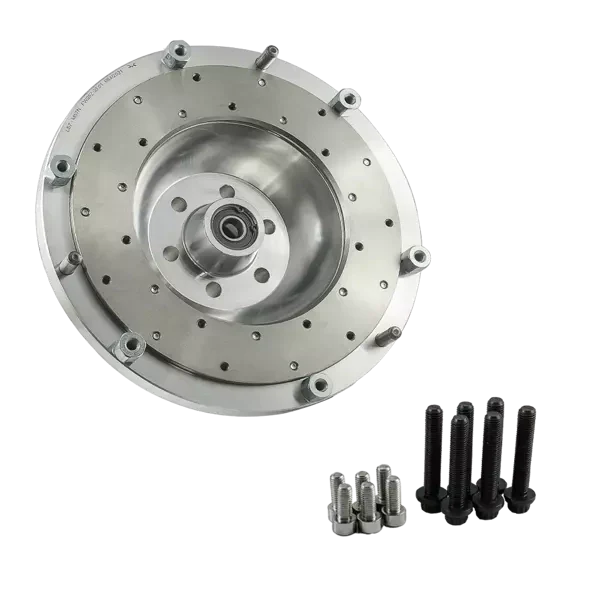

Balanced before shippingEach of our flywheels is thoroughly inspected and balanced before shipping. |
Clutch shaft pilot bearingThe bearing supports the clutch shaft and minimizes its vibrations. |
Replaceable friction surfaceThe worn cast iron surface is easily removable and can be replaced with a completely new one, available in our offer. |
Why Choose PMC Motorsport Parts and Adapters?
Professionalism
From design to implementation, our parts go through extensive processes. Each component is measured with a measuring arm and a 3D scanner. Prototypes are subjected to numerous tests to eliminate all potential issues. We use only certified materials from trusted suppliers, and our CNC machining facilities are staffed by experienced professionals.
Perfect Coaxiality
Our adapters guarantee perfect alignment between the engine and the transmission.
Made in Poland
All production and design work are carried out in Poland.
Expert Assistance and After-Sales Support
The PMC Motorsport team will help you choose the right kit and provide technical support if needed during installation. You can contact us via Facebook, Instagram, or email: [email protected]
Purchase Individual Components
All components of our kits are available for purchase individually. If you need a replacement part, contact us: [email protected]
Fast International Shipping
We ship our products worldwide. EU countries (excluding islands) and the UK have shipping costs calculated automatically. For countries not on the list, we calculate shipping costs after order placement.
VAT 0%
0% VAT for clients with an active European VAT ID (option for B2B clients outside Poland).
Experience
Thousands of adapters produced and satisfied customers worldwide. PMC Motorsport adapters are used in both daily vehicles and professional motorsport projects.
Certified Quality
Quality is our priority. Each part undergoes control at every production stage. Every component is engraved with a unique serial number. We are ISO PN-EN ISO 9001:2015 certified.
Why Choose BMW Transmissions?
Availability and Price. Millions of vehicles produced ensure easy access to spare parts, both from ASO services and the aftermarket.
Durability and Reliability. BMW ZF/Getrag transmissions have proven themselves in amateur and professional motorsport for years. They handle high torque (some models 1000Nm+) and are highly reliable, ideal for high-power SWAP projects.
Speed and Convenience. Modern ZF 8HP or Getrag DCT DKG automatic transmissions provide ultra-fast gear shifts (0.2 seconds).
| Compatible Engines : |
GM Chevrolet V8 LS GM 5.7 Liter V8 Small Block Chevrolet LS1 GM 6.0 Liter V8 Small Block Chevrolet LS2 GM 6.2 Liter V8 Small Block Chevrolet LS3 GM 5.7 Liter V8 Small Block Chevrolet LS6 GM 7.0 Liter V8 Small Block Chevrolet LS7 GM Chevrolet V8 Vortec GM Small Block V8 Chevrolet Vortec 4800 GM Small Block V8 Chevrolet Vortec 5300 GM Small Block V8 Chevrolet Vortec 6000 (VortecMAX) GM Small Block V8 Chevrolet Vortec 6200 |
| Compatible Transmissions : |
BMW ZF (ZF Friedrichshafen) S6-53 GS6-53DZ 6-speed BMW M57n M57n2 E60 530D ZF S6-53 GS6-53DZ HGD (THGD) BMW M57n M57n2 E60 530D ZF S6-53 GS6-53DZ JGA (TJGA) BMW M57n M57n2 (xDrive) ZF S6X53 GS6X53DZ HGE (THGE) BMW M57n M57n2 (xDrive) ZF S6X53 GS6X53DZ JGB (TJGB) |
ZF Friedrichshafen S6-53DZ
ZF Friedrichshafen GS6-53DZ 6-speed manual transmission (S6-53DZ), due to its high durability (1000Nm+) and low price, is the ideal solution for cars prepared for motorsport.
Male spline type: 32.5x35-26N
ZF GS6-53DZ Gear Ratios |
||||||
|---|---|---|---|---|---|---|
| 1 | 2 | 3 | 4 | 5 | 6 | R |
| 5.080 | 2.804 | 1.260 | 1.270 | 1.000 | 0.835 | 4.607 |
Â
ZF GS6-53DZ HGD THGD |
 |
 Â |
ZF GS6-53DZ JGA TJGA |
 Â |
Installation Instructions
!!! PMC Motorsport parts are intended for motorsports and use on race tracks. Parts should be installed by professionals using the appropriate tools in workshops designed for this purpose !!!
The flywheel is made of aluminum and cast iron and is fully recyclable.
! The custom flywheel requires the use of a ring gear / flywheel from the automatic Chevrolet LS– not included in the kit!
Original: $2,106.25
-65%$2,106.25
$737.19
Description
PMC Motorsport Race Stage 1+ adapter / Adaptor kit / swap kit / conversion kit / clutch kit GM Chevrolet LS LS1 LS2 LS3 LS6 LS7 / Vortec - BMW E60 E61 530D M57n ZF GS6-53DZ HGD JGA 6-speed - 240mm / 9.45" + Sachs Performance 883082.001243 + Sintered disc 32,5x35-26N max. 800Nm / 589,9lbâ‹…ft
An adapter allowing the connection (swap / conversion) of a GM Chevrolet LS LS1 LS2 LS3 LS6 LS7 / Vortec with a ZF manual transmission (ZF Friedrichshafen) used in BMWs. The perfect solution for amateur and professional motorsports.
Planning to do a GM Chevrolet LS LS1 LS2 LS3 LS6 LS7 / Vortec SWAP in your BMW (E30, E36, E46, E34, E39, E90, E91, E92, E60, E61, E81, E82, E87)? Our adapter is a reliable solution. Replace your automatic transmission with a BMW manual transmission and gain new possibilities. PMC Motorsport adapters are not only for transmission swaps in GM Chevrolet LS LS1 LS2 LS3 LS6 LS7 / Vortec engines but also provide support for executing LS swaps in BMWs and other vehicles, such as Nissan (S13, S14, S15, PS13) or Mazda RX-7 / RX-8.
|
|
|
Balanced before shippingEach of our flywheels is thoroughly inspected and balanced before shipping. |
Clutch shaft pilot bearingThe bearing supports the clutch shaft and minimizes its vibrations. |
Replaceable friction surfaceThe worn cast iron surface is easily removable and can be replaced with a completely new one, available in our offer. |
Why Choose PMC Motorsport Parts and Adapters?
Professionalism
From design to implementation, our parts go through extensive processes. Each component is measured with a measuring arm and a 3D scanner. Prototypes are subjected to numerous tests to eliminate all potential issues. We use only certified materials from trusted suppliers, and our CNC machining facilities are staffed by experienced professionals.
Perfect Coaxiality
Our adapters guarantee perfect alignment between the engine and the transmission.
Made in Poland
All production and design work are carried out in Poland.
Expert Assistance and After-Sales Support
The PMC Motorsport team will help you choose the right kit and provide technical support if needed during installation. You can contact us via Facebook, Instagram, or email: [email protected]
Purchase Individual Components
All components of our kits are available for purchase individually. If you need a replacement part, contact us: [email protected]
Fast International Shipping
We ship our products worldwide. EU countries (excluding islands) and the UK have shipping costs calculated automatically. For countries not on the list, we calculate shipping costs after order placement.
VAT 0%
0% VAT for clients with an active European VAT ID (option for B2B clients outside Poland).
Experience
Thousands of adapters produced and satisfied customers worldwide. PMC Motorsport adapters are used in both daily vehicles and professional motorsport projects.
Certified Quality
Quality is our priority. Each part undergoes control at every production stage. Every component is engraved with a unique serial number. We are ISO PN-EN ISO 9001:2015 certified.
Why Choose BMW Transmissions?
Availability and Price. Millions of vehicles produced ensure easy access to spare parts, both from ASO services and the aftermarket.
Durability and Reliability. BMW ZF/Getrag transmissions have proven themselves in amateur and professional motorsport for years. They handle high torque (some models 1000Nm+) and are highly reliable, ideal for high-power SWAP projects.
Speed and Convenience. Modern ZF 8HP or Getrag DCT DKG automatic transmissions provide ultra-fast gear shifts (0.2 seconds).
| Compatible Engines : |
GM Chevrolet V8 LS GM 5.7 Liter V8 Small Block Chevrolet LS1 GM 6.0 Liter V8 Small Block Chevrolet LS2 GM 6.2 Liter V8 Small Block Chevrolet LS3 GM 5.7 Liter V8 Small Block Chevrolet LS6 GM 7.0 Liter V8 Small Block Chevrolet LS7 GM Chevrolet V8 Vortec GM Small Block V8 Chevrolet Vortec 4800 GM Small Block V8 Chevrolet Vortec 5300 GM Small Block V8 Chevrolet Vortec 6000 (VortecMAX) GM Small Block V8 Chevrolet Vortec 6200 |
| Compatible Transmissions : |
BMW ZF (ZF Friedrichshafen) S6-53 GS6-53DZ 6-speed BMW M57n M57n2 E60 530D ZF S6-53 GS6-53DZ HGD (THGD) BMW M57n M57n2 E60 530D ZF S6-53 GS6-53DZ JGA (TJGA) BMW M57n M57n2 (xDrive) ZF S6X53 GS6X53DZ HGE (THGE) BMW M57n M57n2 (xDrive) ZF S6X53 GS6X53DZ JGB (TJGB) |
ZF Friedrichshafen S6-53DZ
ZF Friedrichshafen GS6-53DZ 6-speed manual transmission (S6-53DZ), due to its high durability (1000Nm+) and low price, is the ideal solution for cars prepared for motorsport.
Male spline type: 32.5x35-26N
ZF GS6-53DZ Gear Ratios |
||||||
|---|---|---|---|---|---|---|
| 1 | 2 | 3 | 4 | 5 | 6 | R |
| 5.080 | 2.804 | 1.260 | 1.270 | 1.000 | 0.835 | 4.607 |
Â
ZF GS6-53DZ HGD THGD |
|
 |
ZF GS6-53DZ JGA TJGA |
 |
Installation Instructions
!!! PMC Motorsport parts are intended for motorsports and use on race tracks. Parts should be installed by professionals using the appropriate tools in workshops designed for this purpose !!!
The flywheel is made of aluminum and cast iron and is fully recyclable.
! The custom flywheel requires the use of a ring gear / flywheel from the automatic Chevrolet LS– not included in the kit!
